Library / Reference Chips / 700 × 1250 µm, 18 mm long — 1 of 16 channels (Fluidic 558)

700 × 1250 µm, 18 mm long — 1 of 16 channels (Fluidic 558)

channelchip_f558

reference chip Phrozen Sonic Mighty 12K design, checked in CAD channel-chip 700 × 1250 µm

Ali Tahmasbizadeh, Gale Lab, University of Utah

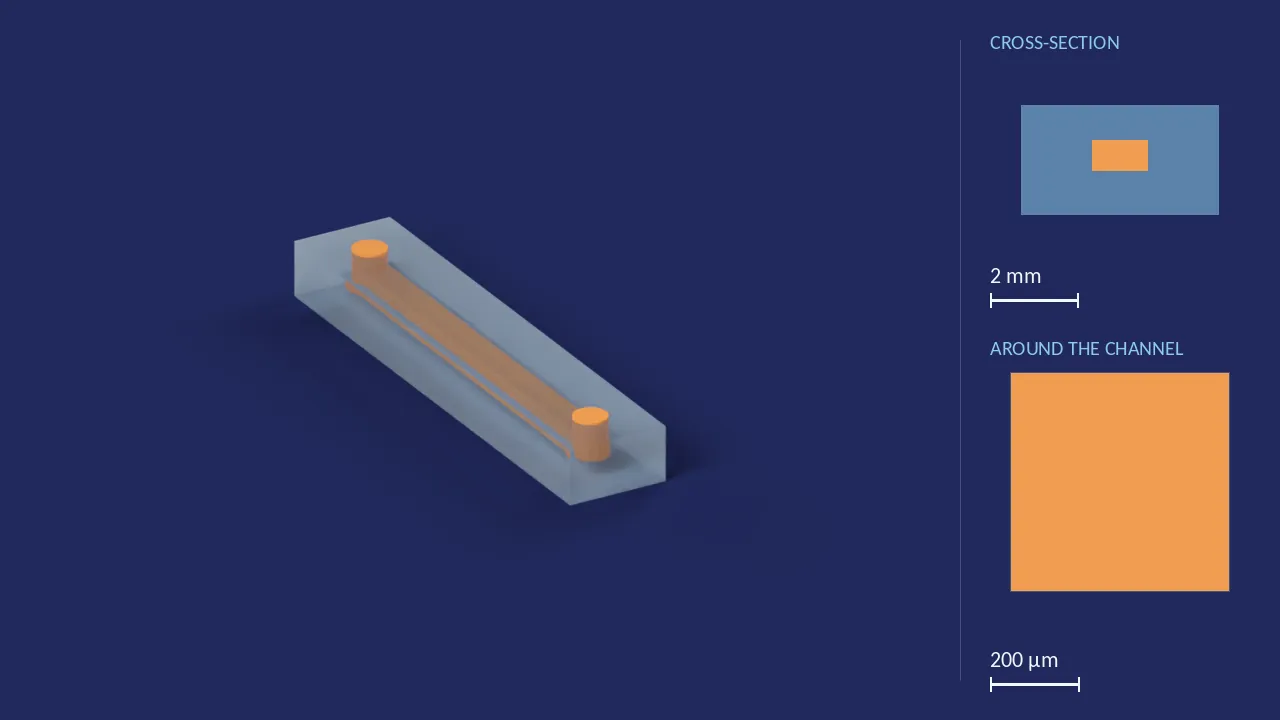

700 × 1250 µm, 18 mm long — 1 of 16 channels (Fluidic 558). A computer render of the design, not a photograph: its body drawn see-through, its channels in orange. The chip is 22.5 mm × 4.5 mm × 2.5 mm. Beside it, its cross-section across the middle, and a 500 µm window around the channel, which is 1.25 mm wide and 700 µm deep there.
Rendered from its design files, not photographed: the body see-through, the channels orange, and its cross-section beside it. Pictures in one family share one scale.

Internal geometry — X-ray

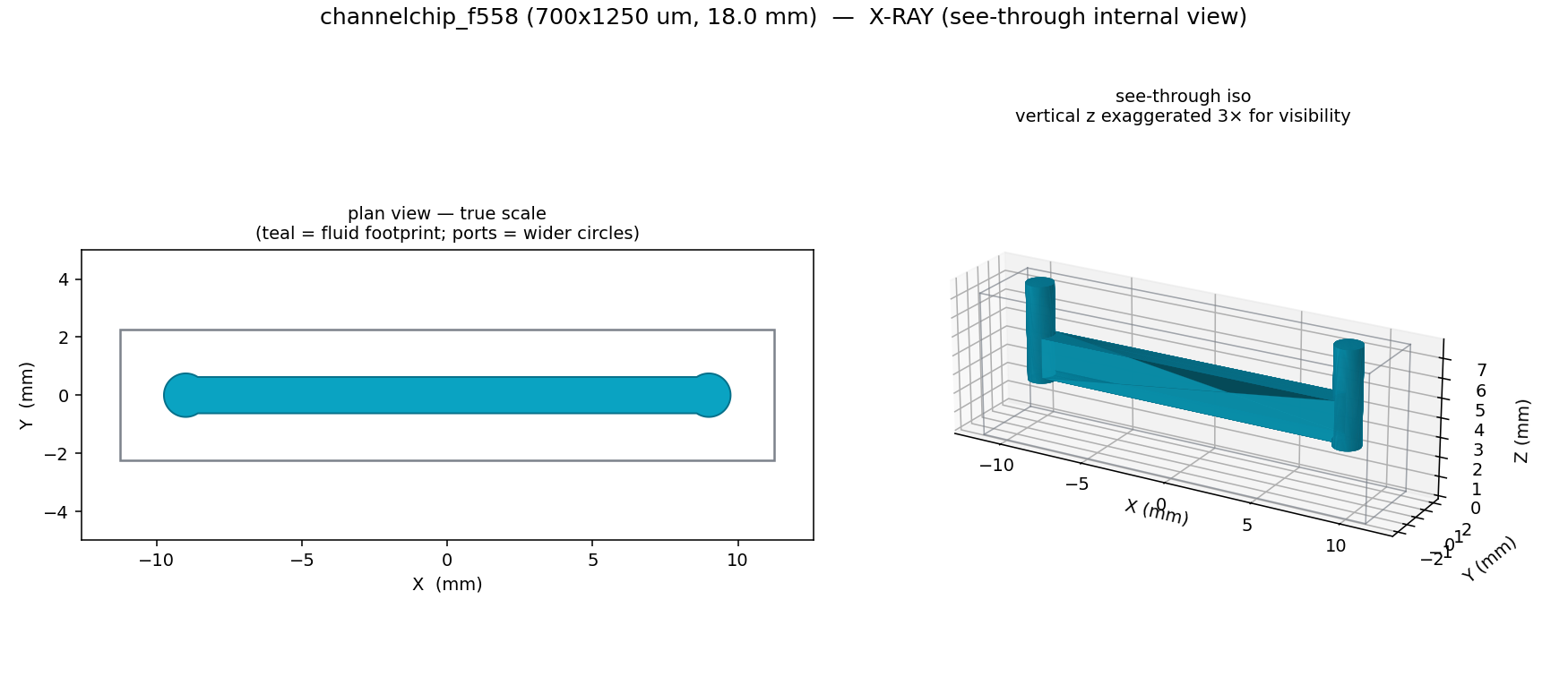

X-ray see-through view of 700 × 1250 µm, 18 mm long — 1 of 16 channels (Fluidic 558): plan footprint (true scale) and z-exaggerated isometric of the internal channel and two bores

See-through internal view. Left: fluid footprint in plan, true scale (teal); ports show as the wider circles. Right: isometric of the internal void, vertical z exaggerated 3× for visibility. The exterior is an opaque solid block — this is what is inside it.

Download: PNG (x-ray)

Longitudinal section & exterior

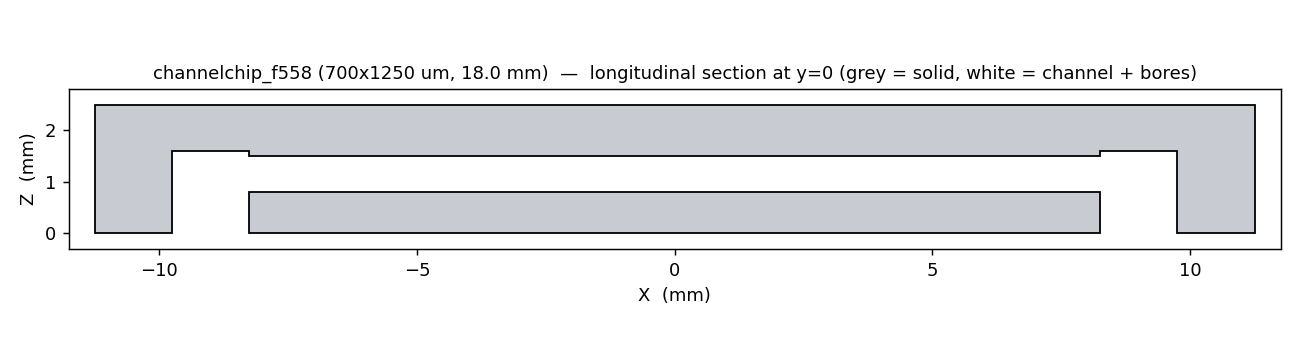

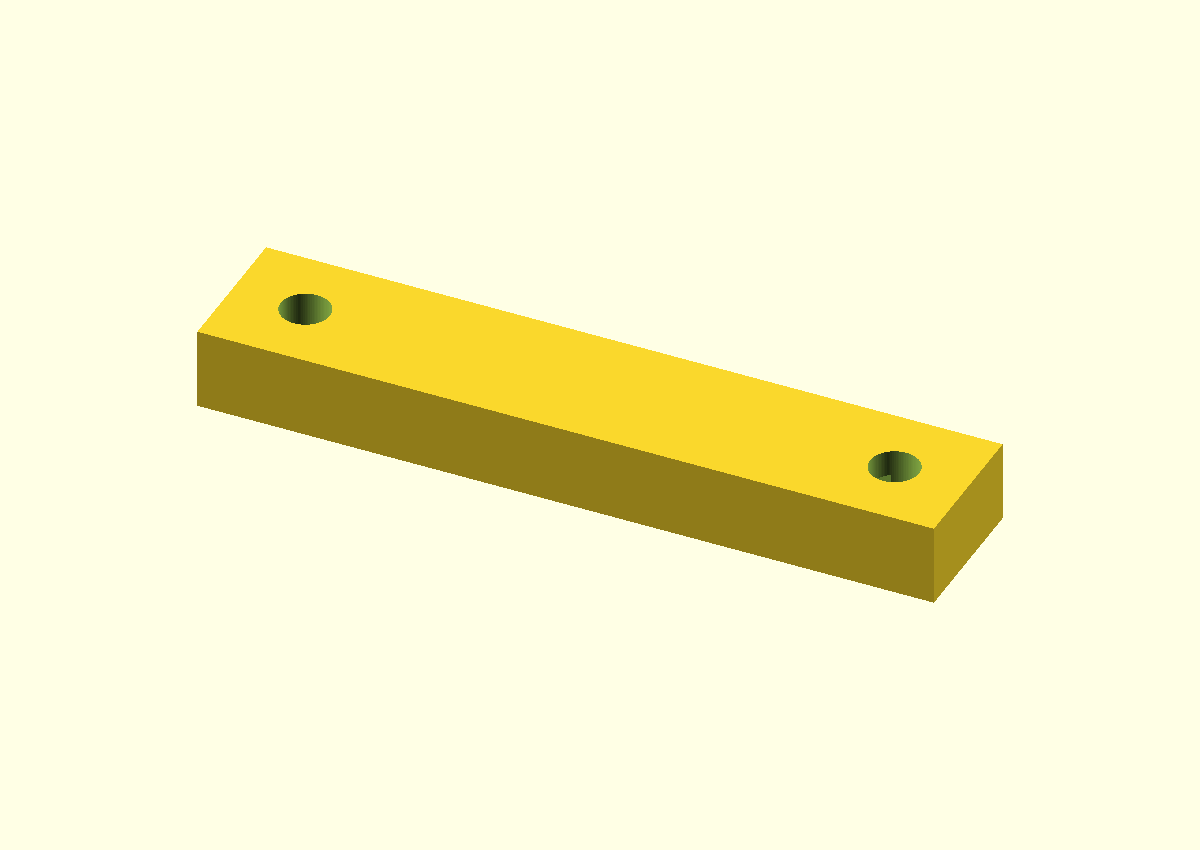

Longitudinal y=0 section of 700 × 1250 µm, 18 mm long — 1 of 16 channels (Fluidic 558): grey solid, white channel and bores Exterior isometric render of 700 × 1250 µm, 18 mm long — 1 of 16 channels (Fluidic 558) (opaque block with two top bores)

Longitudinal section at y=0 (left): grey = solid, white = channel + bores. Exterior isometric (right): the outside of the CAD model, drawn opaque. Click either for full resolution.

Download: PNG (section) · PNG (top) · PNG (iso)

Description

A single monolithic block for resin SLA with one straight rectangular channel 700 µm deep × 1250 µm wide, running the full 18.0 mm port-to-port at mid-height, a solid floor below and ceiling above, and two Ø1.5 mm vertical access bores to the top surface. The vendor part is a sealed polymer body carrying 16 identical parallel channels — this reproduces ONE of them, in a different physical construction. Footprint 22.5 × 4.5 × 2.5 mm.

This models one channel of 16. The microfluidic ChipShop part is a flow cell carrying 16 identical parallel channels. The vendor publishes the channel cross-section and length but no channel pitch and no chip outline, so reproducing the array would mean inventing the spacing. One channel is modelled at the vendor’s exact dimensions instead.

Corrected 2026-07-31: rebuilt at the vendor’s channel length. This chip was previously modelled at 20 mm port-to-port — our own choice, made before the vendor length was on record. microfluidic ChipShop states 18 mm. Length is not cosmetic: channel volume, residence time and pressure drop all scale with it. Anyone who printed our old bundle expecting Fluidic 558 behaviour got 11% more volume than the real part, with a correspondingly longer residence time and a different pressure drop. The analytic channel volume moves from 17.500 µL to 15.750 µL. The bundle has been replaced, not amended — STL, void STL, SCAD and every render are rebuilt at 18 mm. The channel cross-section is unchanged at 700 × 1250 µm.

Verification

metricvalue
Channel cross-section (H × W) — vendor700 × 1250 µm
Channel length — vendor18.0 mm
Channels on the vendor part16 identical parallel — one reproduced here
Footprint (L × W × H) — OUR design22.5 × 4.5 × 2.5 mm OUR DESIGN
Channel volume — analytic (nominal)15.7500 µL
Channel volume — measured on the model's mesh16.1000 µL
Δ (mesh − analytic)+2.22% — uniform 0.4 mm boolean overrun; cross-section exact
Void watertightTrue
Void connected bodies1 — bore→channel→bore continuous
Chip watertightTrue
Chip Euler number0 — genus-1: one cavity, two vents
Min feature vs Phrozen 12K X (px_min = 700/19)36.84 px
Min feature vs Phrozen 12K Y (px_min = 700/24)29.17 px
Min feature vs BYU Nordin (px_min = 700/7.6)92.11 px

All geometry checks run with trimesh (merged vertices) on the exported STLs. See the bundled README for the full method.

Provenance & caveats

Vendor-attributed: channel cross-section H × W, channel length (18.0 mm), and the 16-channel count (product page). OUR design (not the vendor’s): the chip footprint. One channel of many: the vendor part carries 16 identical parallel channels; this models ONE. The vendor publishes no channel pitch and no chip outline, so an 16-channel copy would require inventing the spacing. Ports are simplified straight cylindrical bores, standing in for the vendor’s MFCS Mini Luer sockets. Printability: px_min = 36.84 px in X and 29.17 px in Y on the Phrozen Sonic Mighty 12K (19 × 24 µm), and 92.11 px on the BYU Nordin printer (7.6 µm/px). These are pixel counts; for the process limits on record for each printer, see Hardware and process. Status — Phrozen Sonic Mighty 12K design, checked in CAD: the geometry is watertight and volumetrically checked in CAD — see the Verification table above for the numbers.

Files to download

  • SCADchannelchip_f558.scad10.0 KBDownload
  • STLchannelchip_f558.stl172.0 KBDownload
  • STLvoid_channelchip_f558.stl169.9 KBDownloadFor inspection, not for printing: the fluid network, every space that holds liquid, as a solid.
  • PNGchannelchip_f558_xray.png153.8 KBDownload
  • PNGchannelchip_f558_section.png23.2 KBDownload
  • MDREADME.md1.6 KBDownload

Tags

  • channel-chip
  • not-tested
  • straight-channel
  • adaptation
  • chipshop-adapted
  • sla-print
  • continuous-flow
  • platform-agnostic
  • scad-source
  • stl-included
  • 700x1250um

Provenance & license

Ali Tahmasbizadeh, Gale Lab, University of Utah

SLA adaptation. Channel cross-section (H × W), channel length and channel count taken from the microfluidic ChipShop product page. This is a monolithic 3D-print adaptation of ONE channel of a multi-channel flow cell, NOT a vendor part.
