Weaver valve

byu_weaver_valve

chip Nordin Microfluidic and 3D Printing Lab design, checked in CAD Valves

Nordin Microfluidic and 3D Printing Lab, Brigham Young University

Files to download

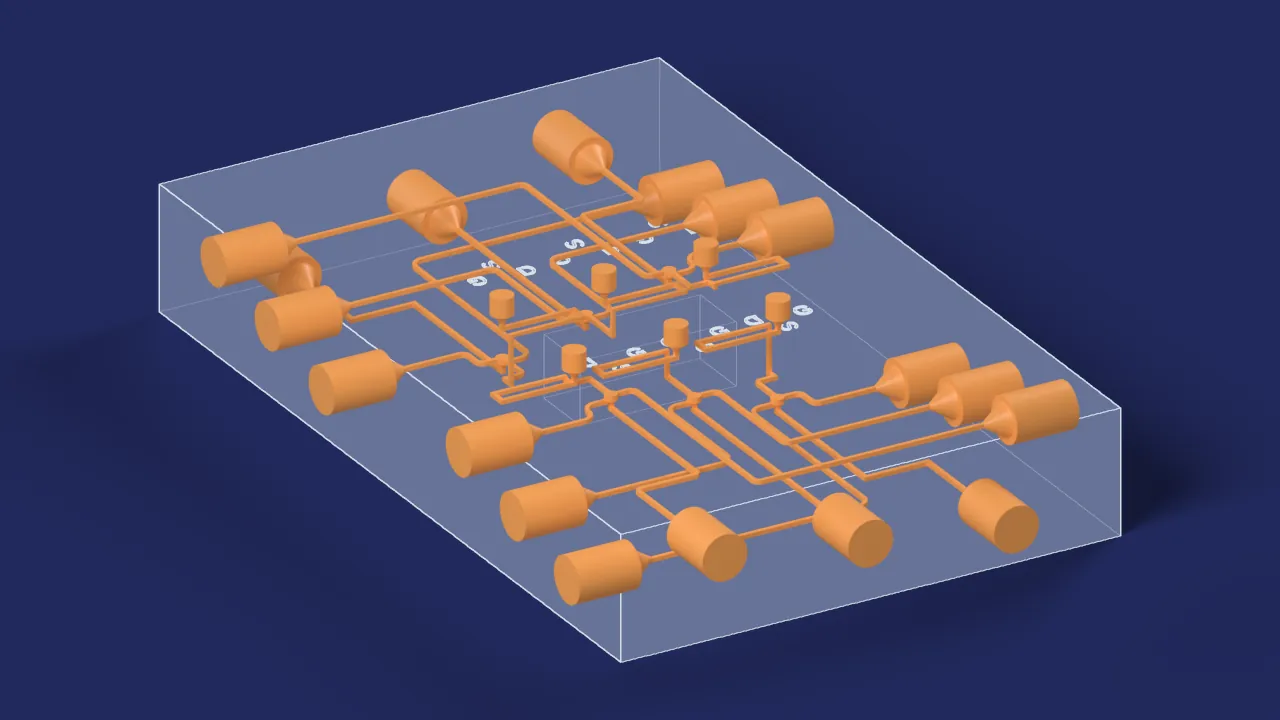

Weaver valve. A computer drawing from its design files, not a photograph: its body drawn see-through, its channels in orange. Its bubble trap, a sealed pocket that holds no liquid, is not drawn in orange.
Drawn from its design files, not photographed: the body see-through, the channels orange. The device is 19.46 mm × 12.16 mm × 3.02 mm.

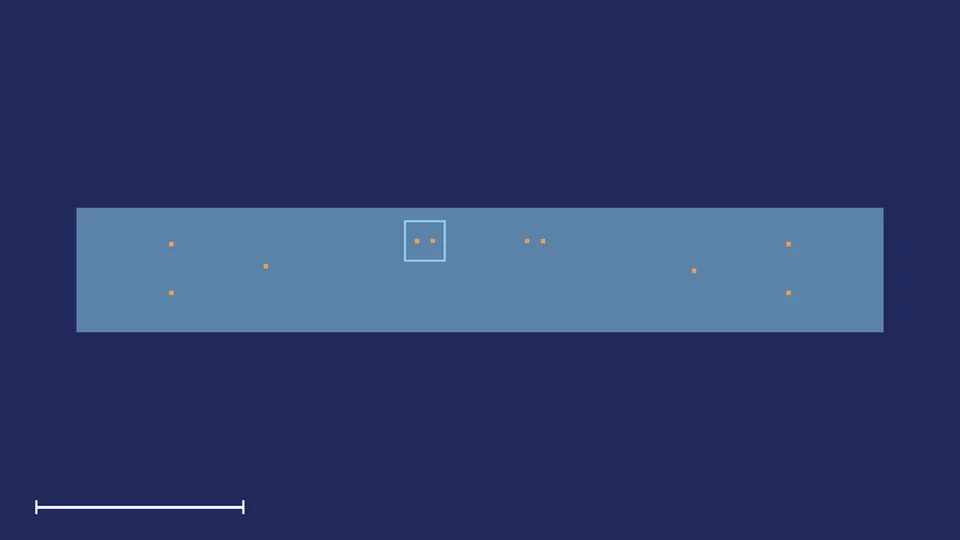

Cross-section of Weaver valve: the resin in blue, the liquid in orange; a square marks the close-up.
Cross-section across its channels (10). The square marks the close-up. The bar is 5 mm.

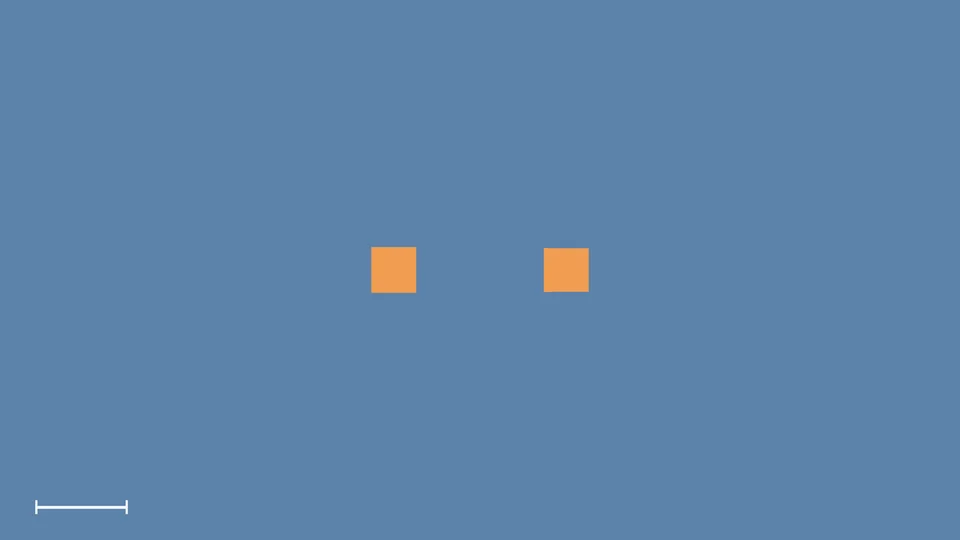

Close-up of the cross-section of Weaver valve, 1 mm across, around its channels.
Close-up, 1 mm across, around its channels. The bar is 200 µm.

Description

A valve from a master's thesis at Brigham Young University (Rawlins 2026 [1]). The chip holds six valves, four weaver valves and two plain ones, each with source, gate, drain and flush channels, labelled S, G and D on its top. A bubble trap sits in the middle.

Developed at the Nordin Microfluidic and 3D Printing Lab, Brigham Young University.

Prints in a custom resin with NPS or avobenzone as the UV absorber.

References

  1. Rawlins (2026). “3D Printed Microfluidic Nonlinear Structures For Implementing Lab-On-a-Chip Integrated Logic Control.” MS thesis, Brigham Young University. BYU ScholarsArchive.
