Squeeze valves

byu_squeeze_valves

chip Nordin Microfluidic and 3D Printing Lab design, checked in CAD Valves

Nordin Microfluidic and 3D Printing Lab, Brigham Young University

Files to download

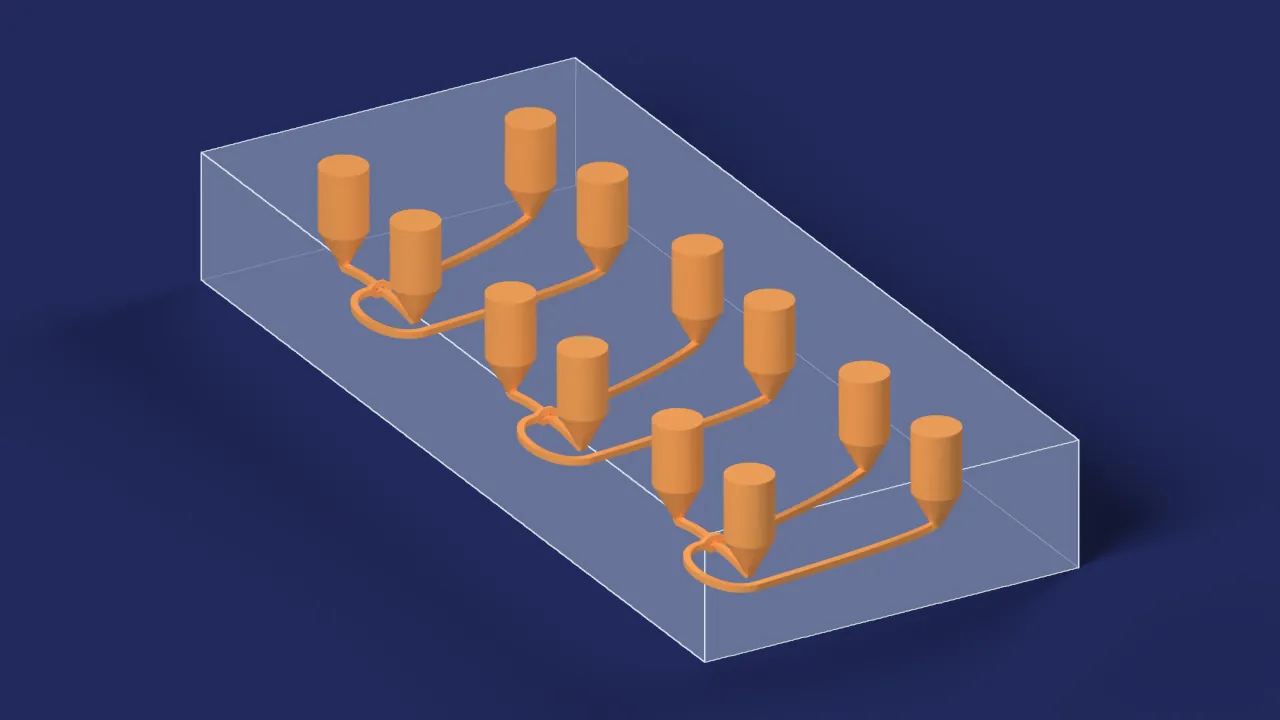

Squeeze valves. A computer drawing from its design files, not a photograph: its body drawn see-through, its channels in orange.
Drawn from its design files, not photographed: the body see-through, the channels orange. The device is 21.28 mm × 9.12 mm × 3 mm.

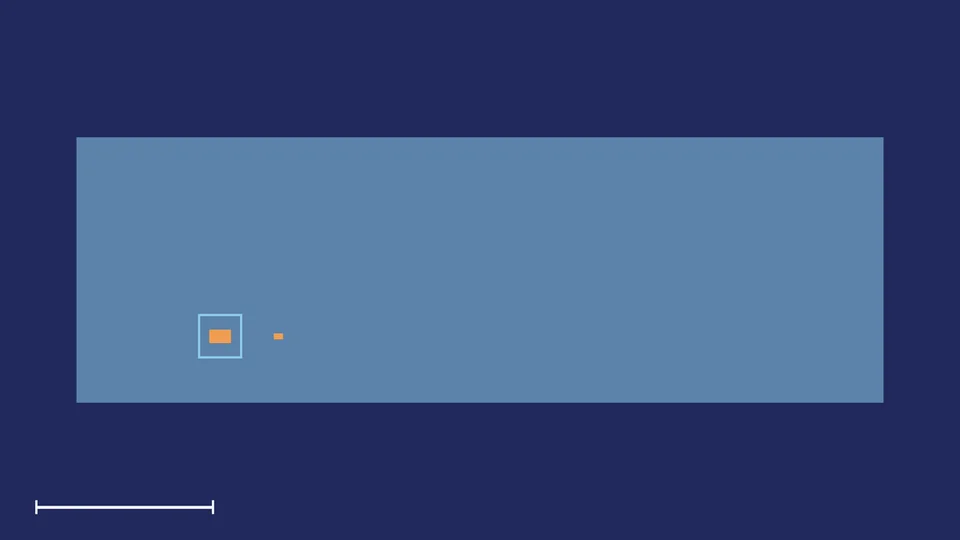

Cross-section of Squeeze valves: the resin in blue, the liquid in orange; a square marks the close-up.
Cross-section across its channels (2). The square marks the close-up. The bar is 2 mm.

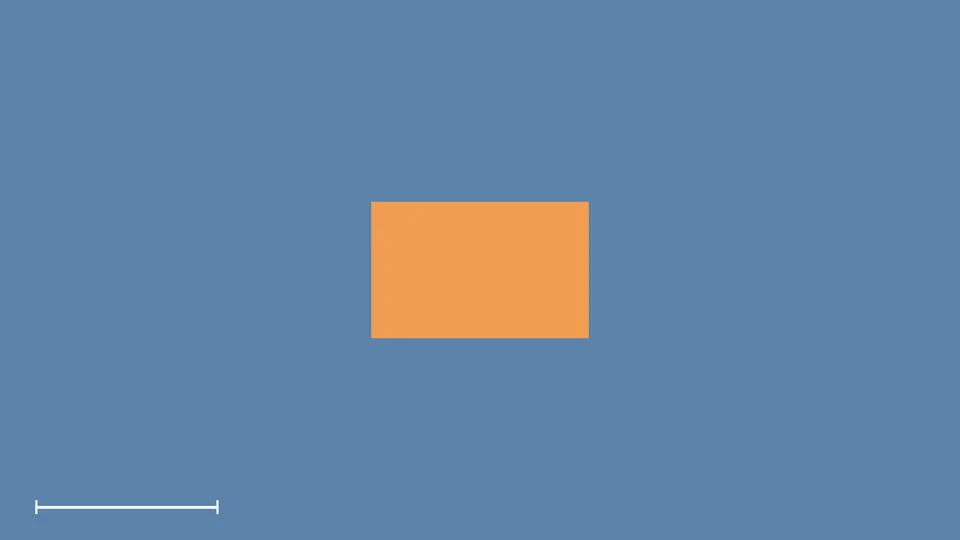

Close-up of the cross-section of Squeeze valves, 500 µm across, around its channel.
Close-up, 500 µm across, around its channel. The bar is 200 µm.

Description

A valve that uses pressure to pinch a channel closed. Three of them, 61, 91 and 122 µm wide, share one print for testing, each with four pinholes.

Developed at the Nordin Microfluidic and 3D Printing Lab, Brigham Young University.

Prints in a custom resin with NPS or avobenzone as the UV absorber.

Citation

Nordin Microfluidic and 3D Printing Lab, Brigham Young University
