Channel for SEM imaging

byu_sem_channel

chip Nordin Microfluidic and 3D Printing Lab design, checked in CAD Channels

Nordin Microfluidic and 3D Printing Lab, Brigham Young University

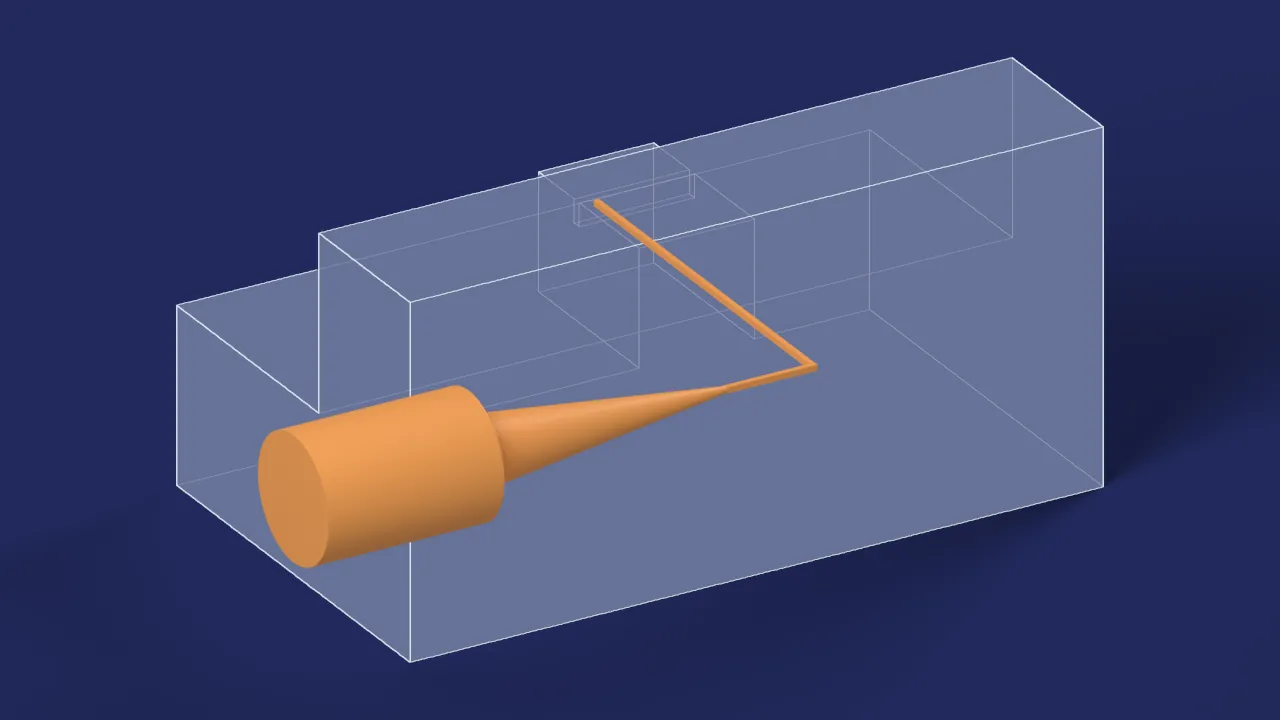

Channel for SEM imaging. A computer drawing from its design files, not a photograph: its body drawn see-through, its channels in orange. — Drawn from its design files, not photographed: the body see-through, the channels orange. The device is 6 mm × 5 mm × 3 mm.

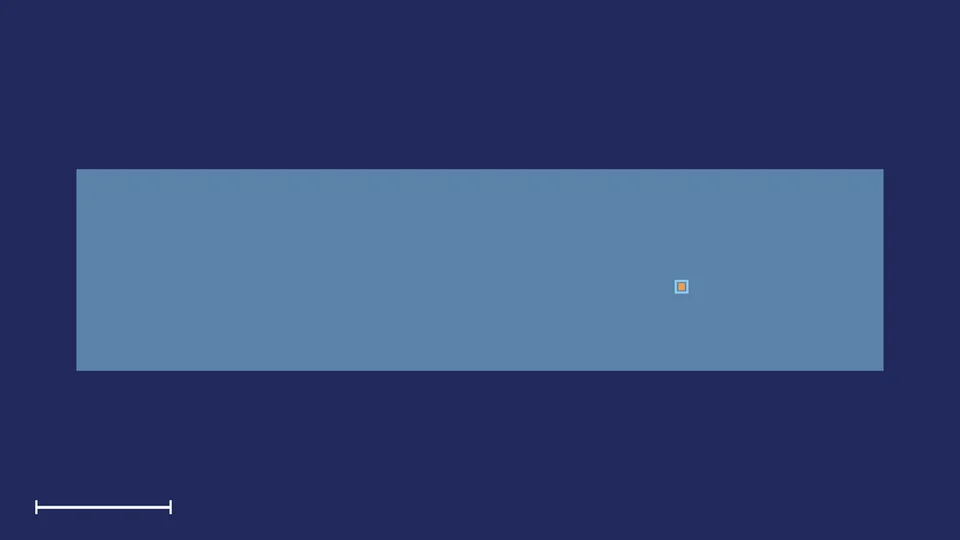

Cross-section of Channel for SEM imaging: the resin in blue, the liquid in orange; a square marks the close-up. — Cross-section across its channel. The square marks the close-up. The bar is 1 mm.

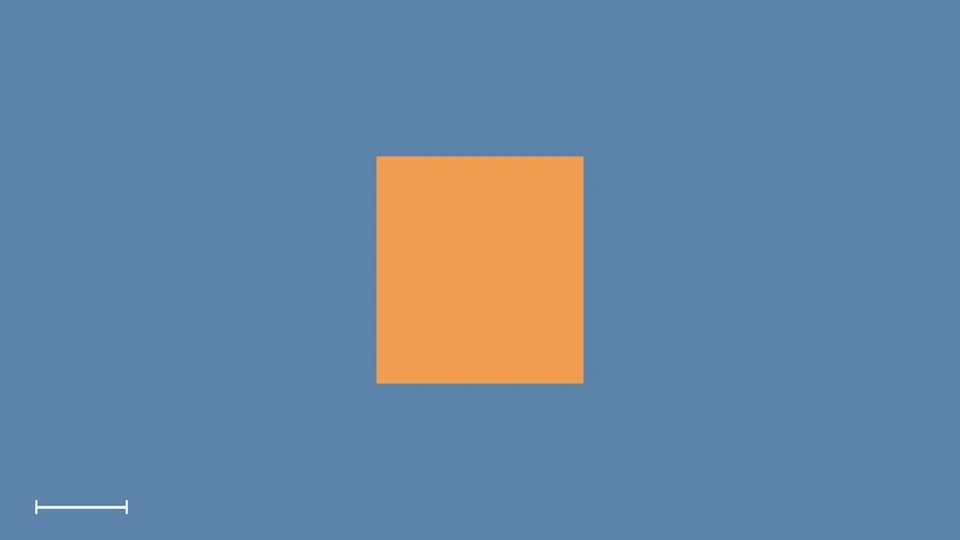

Close-up of the cross-section of Channel for SEM imaging, 100 µm across, around its channel. — Close-up, 100 µm across, around its channel. The bar is 20 µm.

Description

A test piece for imaging a printed channel. The channel, 45.6 µm wide and 50 µm deep, runs from a pinhole in the side of the block along a 1 mm tip, which is cut with a microtome so the channel can be imaged in a scanning electron microscope (SEM). Above the channel, the top half of the block is cut away to avoid over-exposure, and a snap slit crosses the tip near its end.

Developed at the Nordin Microfluidic and 3D Printing Lab, Brigham Young University.

Prints in a custom resin with NPS or avobenzone as the UV absorber.
