Three-valve pump with a serpentine channel

byu_pump_serpentine

chip Nordin Microfluidic and 3D Printing Lab design, checked in CAD Pumps

Nordin Microfluidic and 3D Printing Lab, Brigham Young University

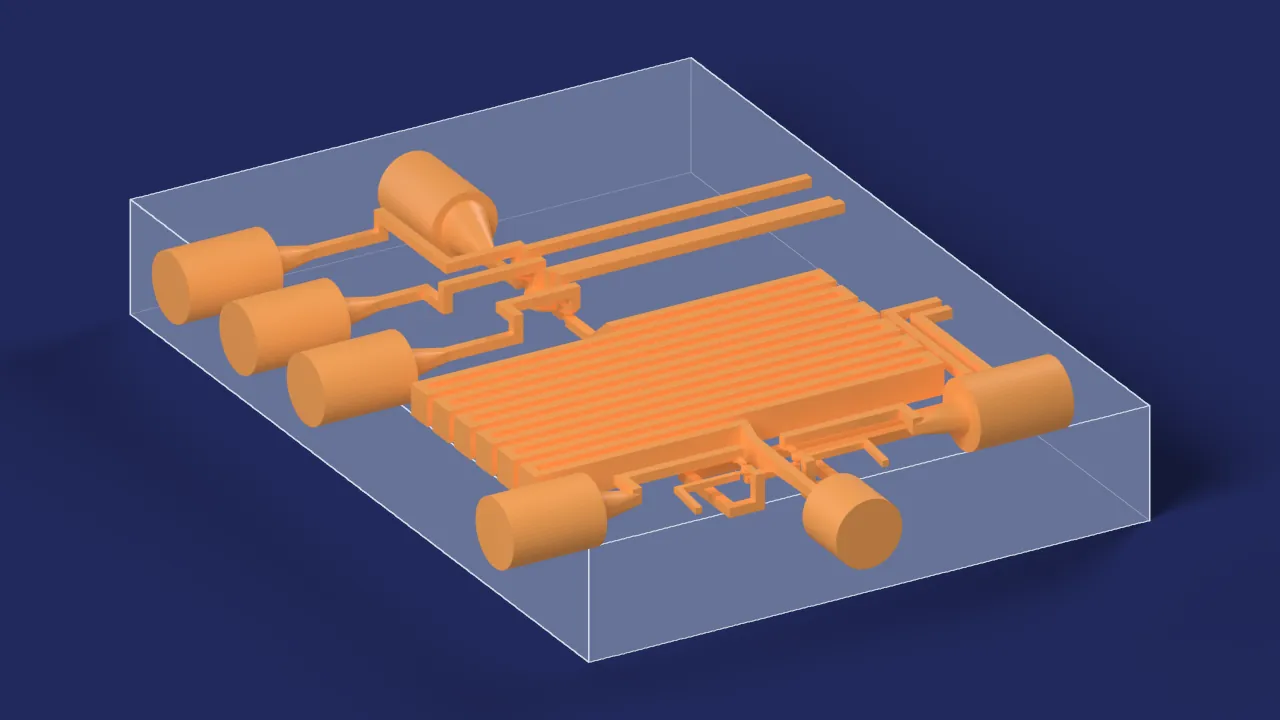

Three-valve pump with a serpentine channel. A computer drawing from its design files, not a photograph: its body drawn see-through, its channels in orange. — Drawn from its design files, not photographed: the body see-through, the channels orange. The device is 12.92 mm × 9.12 mm × 1.8 mm.

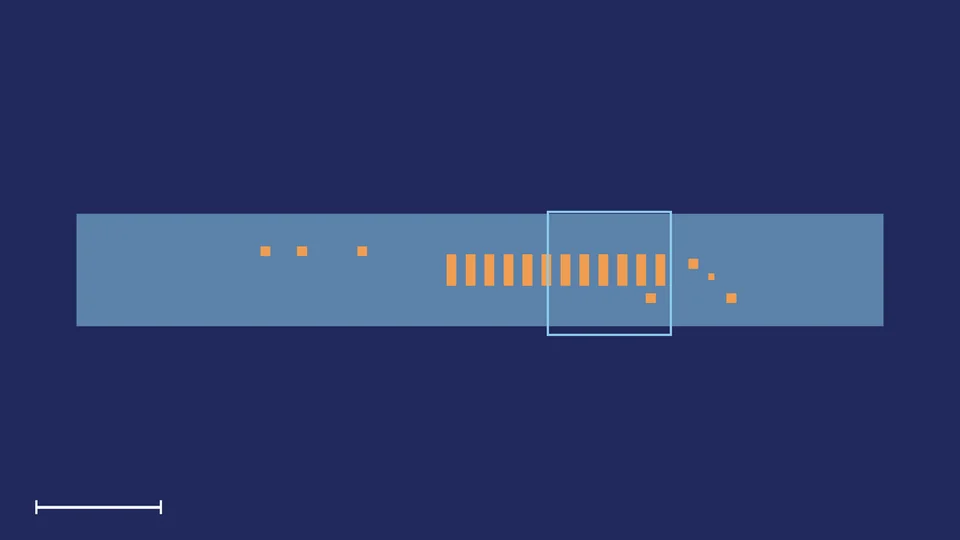

Cross-section of Three-valve pump with a serpentine channel: the resin in blue, the liquid in orange; a square marks the close-up. — Cross-section where it crosses the most channels. The square marks the close-up. The bar is 2 mm.

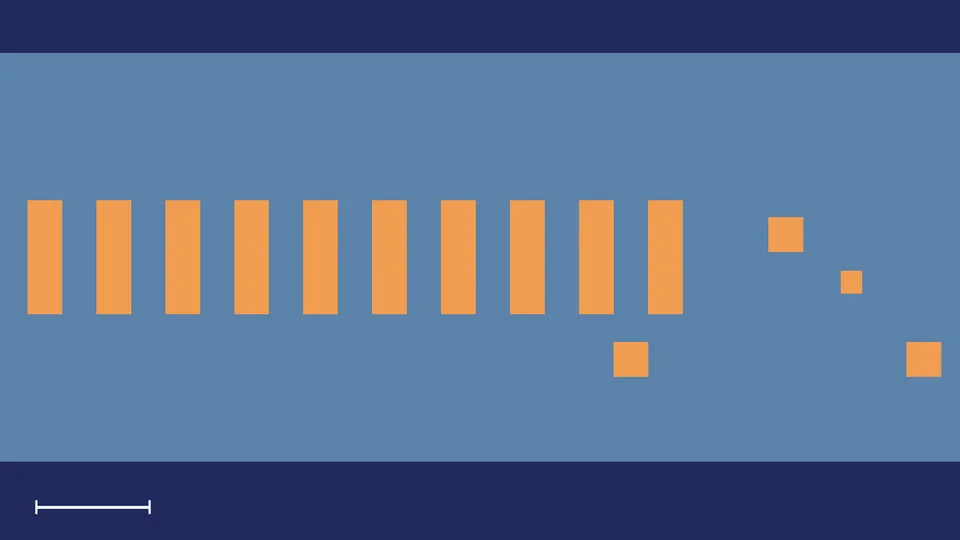

Close-up of the cross-section of Three-valve pump with a serpentine channel, 2 mm across, around its channels. — Close-up, 2 mm across, around its channels. The bar is 500 µm.

Description

A pump of three valves, with a serpentine channel to watch the liquid flow. The chip also has two smaller valves, and a bypass channel with its own pinhole that makes the pump easier to test.

Developed at the Nordin Microfluidic and 3D Printing Lab, Brigham Young University.

Prints in a custom resin with NPS or avobenzone as the UV absorber.

Citation

Nordin Microfluidic and 3D Printing Lab, Brigham Young University
